S&A Water Chiller Unit CWUL-10 for Cooling 10W UV Laser

$600.00
Over a month ago - Sefton , North West, England Website - http://www.teyuchiller.com

  • a62ab86c-6733-46e7-8af3-1bc25744742a.jpeg
  • 2c4ff4a7-82a2-4813-92a9-31cf52143b4e.jpeg

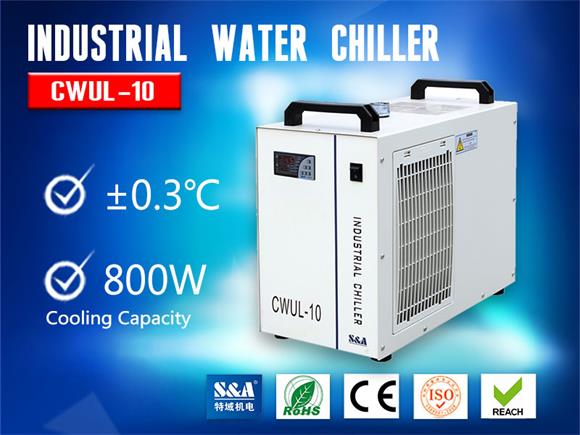

S&A water chiller unit CWUL-10, specially designed for 10W-15W UV laser, is a highly efficient refrigeration type cooling device. It is produced by Guangzhou Teyu Electromechanical Co., Ltd (also known as S&A chiller), a professional Chinese industrial chiller manufacturer with 16-year experience.

S&A water chiller CWUL-10 is characterized by the cooling capacity of 800W and the temperature stability of±0.3℃. It has two temperature control modes, including constant temperature control mode and intelligent temperature control mode. Under intelligent mode, the water temperature can automatically adjust itself according to the room temperature (the water temperature is generally 2℃ lower than the room temperature), which greatly avoids the generation of condensed water.

The temperature control range of S&A water chiller CWUL-10 is 5-35℃. S&A water chiller unit CWUL-10 is CE, RoHS and REACH compliant and has multiple alarm display functions, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm, which can greatly protect the chiller unit.

S&A water chiller unit CWUL-10 features big pump flow and big pump lift in addition to properly designed pipeline, which greatly avoids the generation of the bubble and stabilizes the laser output of the UV laser.

Purified water or clean distilled water is suggested to be used as circulating water of S&A water chiller CWUL-10. Warranty is 2 year.

CWUL-10 water chiller parameter:
Voltage: 220V; Frequency: 50Hz; Refrigerant: R-134a
Pump power: 0.05KW; Tank capacity:6L
Max. lift:12M; Max. flow: 13L/min
N.W: 24Kgs; G.W: 27Kgs; Dimension : 58 X 29 X 47 cm (L X W X H); Packing dimension: 70 X 43 X 58 cm (L X W X H)

About S&A Brand

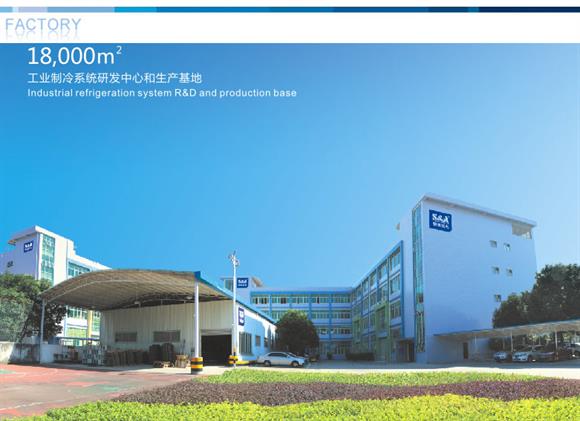

S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18,000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:
1. With 11 patent certificates,CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:
1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60,000 units, product exports rate above 60%;
3. Standard bulk production, standard parts rate up to 80% ;
4. With excellent laboratory testing system, simulates actual working environment for chiller.
CONTACT S&A
SKYPE: teyuchiller ; Email:marketing@teyu.com.cn;
Website: www.teyuchiller.com
TEL:+86-20-89301885; FAX:+86-20-84309967
